Portable HVAC

A Portable Revolution in HVAC: İmbat Orion

Designed to meet today’s dynamic operational requirements, the İmbat Orion Portable Air Conditioning Unit (PACU)is redefining commercial climate control. Developed to provide easy transportation, rapid installation and reliable comfort, this mobile packaged unit can automatically provide both heating and cooling without the need for an additional HVAC system.

News Link 1

News Link 2

Designed around a true plug-and-play principle, Orion can be up and running within minutes, requiring only an electrical connection and the installation of flexible air ducts. This significantly reduces commissioning time and enables users to respond quickly to changing climate-control requirements.

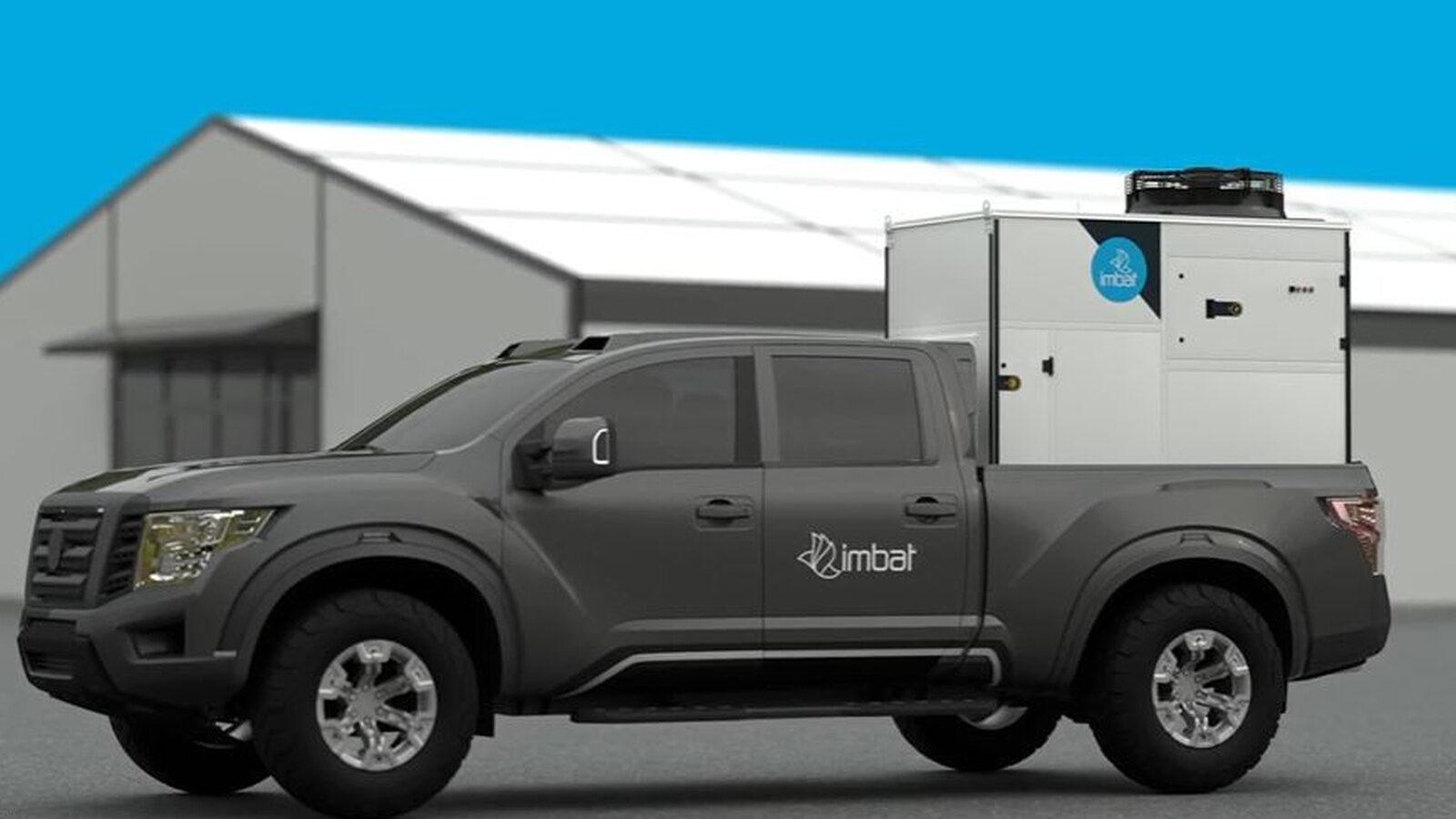

One of Orion’s most distinctive advantages is the exceptional flexibility it offers in logistics. Consisting of three different series, the product family features a compact design and a robust structure suitable for repeated installation and dismantling. Depending on the series, 10 to 12 units can be transported on a single truck, helping to significantly reduce transportation costs.

Thanks to its reinforced portable frame, the units can easily be positioned on site using a forklift, crane or truck. In confined spaces, they can even be moved with a pallet truck, providing maximum operational flexibility.

Reliable Performance in Extreme Conditions

Orion delivers uncompromising performance even under challenging environmental conditions. With airflow capacities ranging from 2,250 m³/h to 8,000 m³/h and cooling capacities from 25 kW to 50 kW, it is suitable for a wide variety of applications.

Designed for continuous year-round operation, the unit can operate reliably with 100% fresh air between -15°C and +42°C outdoor temperatures.

In addition to advanced thermal and acoustic insulation, Orion is equipped as standard with 25 mm or 50 mm double-skin sandwich panels and A1-class rock wool insulation, providing enhanced fire safety, durability and acoustic performance.

Efficiency by Design

Developed with sustainability and energy efficiency in mind, Orion combines a high-efficiency scroll compressor with EC fan technology to minimise energy consumption.

Its standard Heat Pump functionality allows the unit to provide both heating and cooling. An optional Rotary Heat Recovery Module further improves efficiency by recovering energy from exhaust air, helping reduce operating costs.

Reinforced impact-resistant panels and a dedicated protective grille for the outdoor condenser ensure reliable operation and a long service life, even in demanding event and field conditions.

Comfort Wherever It Is Needed

Orion is suitable for an exceptionally broad range of applications, from temporary event spaces such as tents, exhibitions, concerts and seminars to factories requiring additional cooling or heating capacity during peak loads and emergency backup following equipment failure.

It also provides a strategic solution for historic buildings with limited HVAC capacity, delivering effective climate control without requiring permanent modifications to the building.

Easy to monitor and manage through smart automation systems, Orion makes reliable comfort available wherever and whenever it is needed.

ORION SERIES Technical Specifications			ORIO 025	ORIO 039	ORIO 047
Cooling
Cooling Capacity		kW	27,2	38,77	46,21
Power Input		kW	7,6	11,06	15.19
EER		–	3,56	3,51	3.04
Heating-Heat Pump
Heating Capacity		kW	25,4	35.06	44.4
Power Input		kW	6	10.4	13.87
COP		–	4,24	3.37	3.20
Compressor
Refrigerant		–	R-454B
Number of Compressor		pcs	1	1	1+1
Compressor Type		–	Inverter Scroll	Scroll
Compressor Connection Type		–	Standard
Cooling Circuit		pcs	1	1	1
Capacity Control		step	Proportional	1	2
Indoor Fan
STND.	Fan Type		EC Plug
	Airflow Rate	m³/h	4600	6000	7250
	Static Pressure	Pa	150	150	150
	Number of Fan	pcs	1	1	1
	Fan Motor Abs. Power	kW	0,72	1,05	1,11
Heating-Electrical Resistance*
Capacity (ΔT=6 °C)		kW	–	15,00	15,00
Capacity (ΔT=12 °C)		kW	–	30,00	30,00
Outdoor Fan
Fan Type		–	Axial
Number of Fan		pcs	1	1	1
Airflow Rate (Cooling Mode)		m³/h	13200	17800	13000
Sound Level
Sound Power Level		dB(A)	77	75	79
Sound Pressure Level (10m)		dB(A)	49	47	51
Dimensions and Weight
Width		mm	1200	1250	1050
Length		mm	2170	2270	2270
Height		mm	2080	2278	2245
Weight		kg	695	735	750
For 100% fresh air rate, Cooling conditions 35°C DB, 40% RH, Heat pump heating conditions: 7°C DB, 86% RH

İmbat reserves the right to make changes to unit data without prior notice,

Model HK.HNG… Technical Specifications			21	31	41	61	71	81	91	101	121	131	Model HK.HNG… Technical Specifications			151	162	182	202	222	242	262	302	364	404	444
DX Cooling (1)													DX Cooling (1)
Cooling Capacity		kW	9.15	11.93	16.10	21.20	24.25	27,22	30.84	37.80	43.40	46.11	Cooling Capacity		kW	54.97	56.29	66.61	73.01	80.34	86.65	99.00	110.46	130.75	140.76	157.92
Sensible Cooling Capacity		kW	9.15	11.93	16.10	21.20	24.25	27,22	30,84	37.80	43.40	46.11	Sensible Cooling Capacity		kW	54.97	56.29	66.61	73.01	80.34	86.65	99.00	110.46	130.75	140.76	157.92
SHR		–	1	1	1	1	1	1	1	1	1	1	SHR		–	1	1	1	1	1	1	1	1	1	1	1
Compressor Absorbed Power		kW	1.90	2.30	3.27	4.42	5.39	6,03	7,12	7.84	9.00	10.27	Compressor Absorbed Power		kW	11.45	12.00	13.82	14.95	16.87	18.01	20.36	22.88	27.73	30.07	33.83
EER		–	4.01	4.09	4.24	4.23	3.99	3.99	3.85	4.08	4.02	3.81	EER		–	4.06	3.92	3.91	4.29	4.22	4.00	4.04	4.05	4.08	4.02	3.98
Chilled Water (2)													Chilled Water (2)
Cooling Capacity		kW	–	–	27.79	30.88	39.57	–	46.94	–	–	65.49	Cooling Capacity		kW	–	85.47	99.59	113.98	–	144.07	162.21	186.44	212.31	–	–
Sensible Cooling Capacity		kW	–	–	23.77	26.41	32.77	–	38.80	–	–	55.48	Sensible Cooling Capacity		kW	–	72.75	84.57	93.93	–	119.00	133.00	153.00	173.00	–	–
SHR		–	–	–	0.86	0.86	0.83	–	0.83	–	–	0.85	SHR		–	–	0.85	0.85	0.82	–	0.82	0.82	0.82	0.82	–	–
Water Flow		m³/h	–	–	4.77	5.30	6.79	–	8.05	–	–	11.24	Water Flow		m³/h	–	14.66	17.09	19.56	–	24.72	27.83	31.99	36.43	–	–
Pressure Loss		kPa	–	–	93.8	78.6	84.3	–	85.7	–	–	108.0	Pressure Loss		kPa	–	81.9	91.8	87.0	–	72.3	84.3	88.5	108.7	–	–
Compressor													Compressor
Compressor Type		–	Rotary	Scroll									Compressor Type		–	Scroll
Number of Compressor		pcs	1										Number of Compressor		pcs	1	2	2	2	2	2	2	2	4	4	4
Cooling Circuit		–	1										Cooling Circuit		–	1								2
Capacity Control		step	1										Capacity Control		step	1	3	3	3	3	3	3	3	7	7	7
Refrigerant Type		–	R-410A										Refrigerant Type		–	R-410A
Supply Fan													Supply Fan
STD	Fan Type	–	EC Plug										STD	Fan Type	–	EC Plug
	Airflow Rate	m³/h	2500	3400	3600	4500	5000	5800	6200	8400	9200	9400		Airflow Rate	m³/h	11400	12300	14200	15000	15800	18600	19700	22800	25200	27400	30000
	Static Pressure	Pa	30	30	30	30	30	30	30	50	50	50		Static Pressure	Pa	50	50	50	50	50	50	50	50	50	50	50
	Number of Fan	pcs	1	1	1	1	1	1	1	1	1	1		Number of Fan	pcs	1	1	1	2	2	2	2	3	4	4	4
	Fan Absorbed Power	kW	0.38	0.62	0,53	0.60	0.65	0,84	0.90	1.43	1.79	1.85		Fan Absorbed Power	kW	2.09	2.37	3.22	2.06	2.19	3.67	4.15	4.41	4.34	4.97	5.83
Dehumidifier*													Dehumidifier*
Dehumidifier Type		–	Cooling + Electrical Reheater										Dehumidifier Type		–	Cooling + Electrical Reheater
Capacity (Std/Max)		kW	3	3	3	3/6	6/12	6/12	6/12	9/15	9/15	9/15	Capacity (Std/Max)		kW	9/15	12/18	12/18	12/18	12/18	18/24	18/24	18/24	18/30	18/30	18/30
Humidifier*													Humidifier*
Humidifier Type		–	Steam										Humidifier Type		–	Steam
Capacity		kg/h	3	3	3	3	3/8	3/8	3/8	3/8	3/8	3/8	Capacity		kg/h	3/8/15	3/8/15	3/8/15	3/8/15	3/8/15	3/8/15	3/8/15	3/8/15	3/8/15/30	3/8/15/30	3/8/15/30
Power Input (Max)		kW	2.25	2.25	2.25	2.25	6.00	6.00	6.00	6.00	6.00	6.00	Power Input (Max)		kW	11.50	11.50	11.50	11.50	11.50	11.50	11.50	11.50	22,50	22,50	22,50
Sound Level													Sound Level
Sound Power Level		dB(A)	66	71	65	60	63	66	67	72	74	74	Sound Power Level		dB(A)	72	74	77	67	68	77	78	77	75	76	78
Sound Pressure Level (3m)		dB(A)	49	53	48	43	45	48	49	54	56	57	Sound Pressure Level (3m)		dB(A)	55	56	60	50	51	59	61	60	57	59	61
Dimensions													Dimensions
Width		mm	700	700	700	700	780	780	780	930	930	930	Width		mm	930	930	930	930	930	930	930	930	930	930	930
Length		mm	700	700	780	780	950	950	950	1300	1300	1300	Length		mm	1600	1600	1950	1950	1950	2450	2450	2750	3050	3200	3350
Height		mm	1600	1600	1980	1980	1980	1980	1980	1980	1980	1980	Height		mm	1980	1980	1980	1980	1980	1980	1980	1980	1980	1980	1980
Weight		kg	180	200	235	255	360	370	420	510	525	535	Weight		kg	640	685	780	790	810	965	975	985	1125	1140	1160

1. Cooling capacity is given based on 35 °C DB, 30% RH indoor air temperature and 47 °C condensing temperature conditions.													1. Cooling capacity is given based on 35 °C DB, 30% RH indoor air temperature and 47 °C condensing temperature conditions.
2. Cooling capacity for the Chilled Water Cooling type (HK.0N0…) is based on 35 °C DB, 30% RH indoor air and 7/12 °C water conditions.													2. Cooling capacity for the Chilled Water Cooling type (HK.0N0…) is based on 35 °C DB, 30% RH indoor air and 7/12 °C water conditions.
*Optional,													*Optional,
Imbat reserves the right to make changes to its products without prior notice.													Imbat reserves the right to make changes to its products without prior notice.

GRUS Technical Specifications			GRUS 010

Cooling Capacity		kW	10.64
Sensible Heat Ratio Capacity		kW	10.64
Compressor Absorbed Power		kW	3.13
EER			3.18
Sensible Heat Ratio			1
Compressor
Refrigerant Type			R-410A
Number of Compressor		adet	1
Compressor Type			Inverter Scroll
Vantilator
STND.	Fan Type	–	EC Axial
	Airflow Rate	m³/h	1600
	Static Pressure	Pa	50
	Number of Fan	adet	1
	Fan Absorbed Power	kW	0.21
Sound Level
Sound Power Level		dB(A)	85
Sound Pressure Level (3m)		dB(A)	67
Dimensions
Width		mm	496
Length		mm	740
Height		mm	355
Weight		kg	47

Cooling capacity at 40°C DB, 20% RH indoor temperature and 35°C outdoor temperature,
İmbat reserves the right to make changes to unit data without prior notice,

MODEL KO.SG……S		800401	800802	801001	801301	801501	802002	802402	802802	803204	803804	804204	804404	804804	805004	805404	805604	806004	107004
Technical Specifications
Cooling Capacity	kW	10.20	20.10	27.20	37.90	43.10	55.90	67.20	82.60	88.90	106.10	118.30	119.50	130.60	143.20	153.90	161.00	176.70	185.10
Compressor Absorbed Power	kW	3.40	6.90	7.80	11.40	13.80	17.70	20.60	24.60	29.70	33.10	38.40	37.30	43.40	42.60	48.40	50.90	53.70	59.20
EER		3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00
Refrigerant Type		R-410A
Number of Compressor	pcs	1	2	1	1	1	2	2	2	4	4	4	4	4	4	4	4	4	4
Compressor Type		Scroll
Number of Fan	pcs	1	1	2	2	2	4	4	4	4	6	6	6	6	8	8	8	8	10
Fan Type		Axial
Fan Absorbed Power	kW	0.30	0.70	1.30	1.40	1.40	2.50	2.60	2.60	2.60	3.90	3.90	4.00	4.00	5.10	5.10	5.10	5.20	6.30
Total Absorbed Power	kW	3.70	7.60	9.10	12.70	15.20	20.20	23.10	27.30	32.30	37.00	42.30	41.20	47.40	47.70	53.50	56.00	58.90	65.60
Length	mm	530	650	955	955	955	1785	1785	1785	1785	1785	1785	1785	1785	1785	1785	1785	1785	1785
Width	mm	1350	1650	1860	1860	1860	1675	1675	1675	1675	2270	2270	2270	2270	2970	2970	2970	2970	3970
Height	mm	870	1150	925	925	925	1310	1310	1310	1310	1310	1310	1310	1310	1310	1310	1310	1310	1310

MODEL CH.HNG… Technical Specifications		464	564	726	786	906	1004	1104	1204	1404	1604	1806	2006	2206	2406
Cooling
Cooling capacity	kW	121.47	139.68	162	198	221.16	237.87	277.31	300.88	330.83	393.44	444.72	517.71	553.13	591.21
Total absorbed power	kW	42.90	53.10	69.64	75.48	84.10	94.16	103.85	119.51	139.37	148.13	183.36	186.37	203.79	220.35
EER		2.83	2.63	2.33	2.62	2.63	2.53	2.67	2.52	2.37	2.66	2.43	2.78	2.71	2.68
SEER		3.26	3.03	2.68	3.01	3.02	2.91	3.07	2.90	2.73	3.05	2.79	3.19	3.12	3.09
Heating-Heat Pump
Heating capacity	kW	138.78	160.05	192.87	225.95	255.89	275.75	317.41	345.72	380.18	444.97	501.99	597.77	629.65	666.83
Total power input	kW	42.87	50.20	61.25	71.25	79.46	85.86	98.23	108.79	120.78	137.52	163.75	180.29	192.32	204.85
COP		3.24	3.19	3.15	3.17	3.22	3.21	3.23	3.18	3.15	3.24	3.07	3.32	3.27	3.26
Compressor
Refrigerant	R-410A
Compressor type	Scroll
Compressor quantity	pcs	4	4	6	6	6	4	4	4	4	4	6	6	6	6
Capacity step	Step	6	6	6	6	6	4	6	4	6	4	6	8	8	6
Compressor connection type		Asymmetric	Asymmetric	Standard	Asymmetric	Asymmetric	Standard	Asymmetric	Standard	Standard	Asymmetric	Asymmetric	Asymmetric	Asymmetric	Asymmetric
Evaporator
Evaporator type	Plate
Evaporator quantity	pcs	1	1	1	1	1	1	1	1	1	1	1	1	2	2
Min, water flow	kg/s	4.15	4.77	5.55	6.75	7.55	8.12	9.46	10.27	11.29	13.43	15.18	17.67	18.88	20.18
Nominal water flow	kg/s	9.67	11.12	12.94	15.75	17.61	18.94	22.08	23.96	26.34	31.33	35.41	41.23	44.05	47.08
Nominal water flow	kg/s	5.80	6.67	7.76	9.45	10.57	11.37	13.25	14.38	15.81	18.80	21.25	24.74	26.43	28.25
Nominal pressure drop	Pa	75	75	75	75	75	75	75	75	75	75	75	75	75	75
Condenser
Condenser type	Copper Tube, Aluminum Fins
Nominal airflow rate	m³/h	44000	44000	44000	75400	77400	70800	70800	88200	88200	88200	123800	116800	166800	166800
Fan type	mm	Axial
Fan diameter		910	910	910	910	910	910	910	910	910	910	910	910	910	910
Fan quantity		2	2	2	3	3	3	4	4	4	5	5	8	8	10
Fan power input	kW	3.3	3.3	3.3	4.94	5.14	5.14	6.59	6.59	6.59	10.42	10.8	13.79	13.79	14.24
Water inlet / outlet	Inch	2 1/2”	2 1/2”	3	3	4	4	4	4	4	4	5	5	5	5
Dimensions
Width	mm	1651	1651	1651	1651	1651	1651	1651	1651	1651	1651	1651	2493	2493	2493
Lenght	mm	2943	2943	2943	4044	4044	4044	5138	5138	5138	6247	6247	4593	4593	5600
Height	mm	2477	2477	2477	2477	2477	2477	2477	2477	2477	2477	2477	2663	2663	2663
Unit weight	kg	1177	1288	1455	1688	1827	1951	1951	2514	2541	2843	3007	3922	4002	4288
Unit operating weight	kg	1183	1295	1464	1698	1838	1964	2185	2530	2558	2863	3028	3946	4028	4315
Sound Level
Ses Gücü Seviyesi	dB(A)	80	81	81	82	83	86	89	90	90	91	92	92	92	93
Ses Basınç Seviyesi (10m)	dB(A)	52	53	53	54	55	58	61	62	62	63	64	64	64	65
