Passenger Boarding Bridge Air Conditioners

PASSENGER BOARDING BRIDGE UNITS

Air Conditioning for Aviation

R-454 B

R-410 A

Avıatıon AC

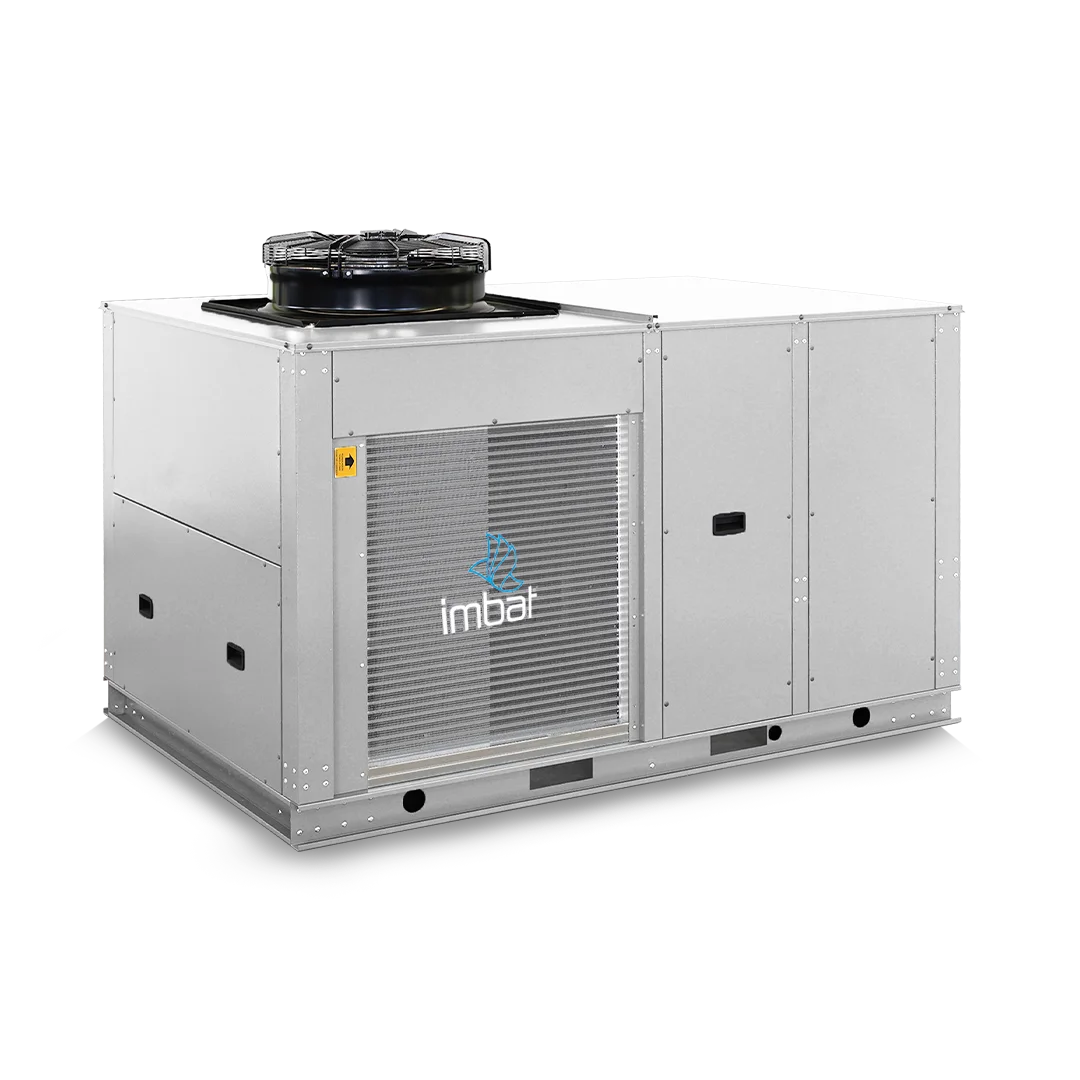

IMBAT PASSENGER BOARDING BRIDGE UNITS

Imbat Passenger Boarding Bridge Air Conditioner series ensures efficient performance with a lightweight, bridge-compatible design that operates under varying outdoor temperatures. With 100% domestic design, these units climate-control the bridge interior within 20 minutes, serving both fixed and movable sections.

Available in four models with a capacity range of 15 kW to 38 kW, the series features scroll compressors, axial condensers with self-contained motors, and EC plug circulation fans for high efficiency and quiet operation. Offering low energy consumption and high performance, these eco-friendly units are ideal for sustainable and cost-effective projects.

Features like a smart defrost system, electronic expansion valves, and wired remote control enhance usability and convenience.

R-454 B

R-410 A

Avıatıon AC

IMBAT PASSENGER BOARDING BRIDGE UNITS

Standard Features

With a capacity range of 15 to 38 kW, this unit offers versatile solutions to meet various cooling and heating demands, ensuring optimal performance across a wide range of applications. This flexibility allows operators to customize the system based on specific boarding bridge requirements, providing tailored comfort for passengers.

Flexible Capacity Range

Using R-454B and R-410A refrigerants, this system prioritizes environmental sustainability while delivering high energy efficiency and superior cooling performance. Its low environmental impact aligns with global sustainability goals, ensuring compliance with eco-friendly regulations.

Environmentally Friendly Refrigerant

Scroll compressors of Imbat provide high energy efficiency and reliable performance with fewer moving parts, which reduces maintenance needs. Their durability make them ideal for mobile applications, ensuring consistent and efficient temperature control.

Scroll Compressors

The cooling and heat pump functionality provides year-round comfort and energy-efficient operation. While the cooling mode ensures reliable performance, the heat pump uses external air to deliver efficient heating. This dual capability reduces energy consumption and adapts easily to changing seasonal conditions.

Cooling + Heat Pump Functionality

The intelligent defrost mechanism prevents ice buildup, maintaining system efficiency and ensuring uninterrupted performance even in challenging conditions. This system automatically adjusts defrost cycles, reducing downtime and enhancing energy efficiency during operation.

Smart Defrost System

The electronic expansion valve precisely regulates refrigerant flow, optimizing cooling capacity and maintaining stable temperature and humidity under varying loads. Its fast response improves energy efficiency, reduces consumption, and operates with low superheat values to extend compressor life and ensure reliable cooling.

Electronic Expansion Valve (EEV)

The EC fan provides variable speed and airflow control, automatically adjusting to demand. This technology maximizes energy efficiency and overall system performance, reduces noise and turbulence, and ensures optimal airflow for consistent comfort -making it ideal even for noise-sensitive environments.

EC Fan

Designed for ease of service and maintenance, the unit provides convenient access to key components and a straightforward installation process. This design simplifies routine inspections and repairs, minimizes downtime, and reduces operational costs, ensuring long-term reliability for facilities with continuous cooling demands.

Ease of Service and Maintenance

The user-friendly LCD display and wired remote control provide intuitive operation and monitoring, enabling precise adjustments and enhancing overall user experience. This setup allows technicians to diagnose issues and fine-tune settings easily, ensuring uninterrupted operation.

Lcd Display and Remote Control

With a fully automatic design and plug-and-play capability, the system ensures quick and hassle-free installation, making it ideal for rapid deployment. This feature is particularly useful for urgent setups or locations with limited technical support.

Plug and Play Installation

The dirty filter alarm notifies users when filters need cleaning or replacement, ensuring continuous system efficiency and maintaining indoor air quality.

Filter Alarm

Low and high-pressure switches provide added protection by monitoring refrigerant pressure levels, preventing potential damage and ensuring safe operation.

Low and High-Pressure Switches

Inverter Compressor

Up to 0-100% Fresh Air Ratio

Hydrophilic or Epoxy-Coated Evaporator

Copper Tube and Copper Fin Condenser

Staged Electrical Heater

Condenser Fan Speed Control

Supply Air Humidity Sensor

Smoke Detector

Control Panel With Graphical Interface Tailored for Close Controls

Building Management System (BMS) Integration Options

Remote Control & Automation

IMBAT PASSENGER BOARDING BRIDGE UNITS

What Makes İmbat Different

Compact and Modular Design Tailored for Aviation

Designed specifically for passenger boarding bridge air conditioning in airports, Imbat units feature a compact and modular structure with a microchannel condenser design. The system’s lightweight construction and low refrigerant charge enhance its practicality and ease of installation.

High Efficiency for the Aviation Industry

Equipped with inverter scroll compressors, electronic expansion valves, variable-speed high-pressure radial plug fans, and condenser fan speed control, Imbat aviation cooling units deliver high energy efficiency. Large evaporator surfaces and microchannel condensers further maximize cooling performance while reducing energy consumption.

Rapid Cooling

With its highly efficient components and optimized design, Imbat systems can achieve complete climate control inside the boarding bridge in just 20 minutes. This feature ensures passenger comfort is quickly restored, even during peak operational demands, making it ideal for busy airport environments.

Ease Of Maintenance Tailored for Aviation

The multi-modular cooling structure with independent circuits provides exceptional serviceability, allowing for faster and easier maintenance. This design minimizes downtime, ensuring uninterrupted operation and long-term reliability in busy airport environments.

ORION SERIES			ORIO 025	ORIO 039	ORIO 047
Technical Specifications
Cooling
Cooling Capacity		kW	27,2	38,77	46,21
Power Input		kW	7,6	11,06	15.19
EER		–	3,56	3,51	3.04
Heating-Heat Pump
Heating Capacity		kW	25,4	35.06	44.4
Power Input		kW	6	10.4	13.87
COP		–	4,24	3.37	3.2
Compressor
Refrigerant		–	R-454B
Number of Compressor		pcs	1	1	1+1
Compressor Type		–	Inverter Scroll	Scroll
Compressor Connection Type		–	Standard
Cooling Circuit		pcs	1	1	1
Capacity Control		step	Proportional	1	2
Indoor Fan
STND.	Fan Type		EC Plug
	Airflow Rate	m³/h	4600	6000	7250
	Static Pressure	Pa	150	150	150
	Number of Fan	pcs	1	1	1
	Fan Motor Abs. Power	kW	0,72	1,05	1,11
Heating-Electrical Resistance*
Capacity (ΔT=6 °C)		kW	–	15,00	15,00
Capacity (ΔT=12 °C)		kW	–	30,00	30,00
Outdoor Fan
Fan Type		–	Axial
Number of Fan		pcs	1	1	1
Airflow Rate (Cooling Mode)		m³/h	13200	17800	13000
Sound Level
Sound Power Level		dB(A)	77	75	79
Sound Pressure Level (10m)		dB(A)	49	47	51
Dimensions and Weight
Width		mm	1200	1250	1050
Length		mm	2170	2270	2270
Height		mm	2080	2278	2245
Weight		kg	695	735	750
For 100% fresh air rate, Cooling conditions 35°C DB, 40% RH,
Heat pump heating conditions: 7°C DB, 86% RH
İmbat reserves the right to make changes to unit data without prior notice,

Model HK.HNG… Technical Specifications			21	31	41	61	71	81	91	101	121	131
DX Cooling (1)
Cooling Capacity		kW	9.15	11.93	16.10	21.20	24.25	27,22	30.84	37.80	43.40	46.11
Sensible Cooling Capacity		kW	9.15	11.93	16.10	21.20	24.25	27,22	30,84	37.80	43.40	46.11
SHR		–	1	1	1	1	1	1	1	1	1	1
Compressor Absorbed Power		kW	1.90	2.30	3.27	4.42	5.39	6,03	7,12	7.84	9.00	10.27
EER		–	4.01	4.09	4.24	4.23	3.99	3.99	3.85	4.08	4.02	3.81
Chilled Water (2)
Cooling Capacity		kW	–	–	27.79	30.88	39.57	–	46.94	–	–	65.49
Sensible Cooling Capacity		kW	–	–	23.77	26.41	32.77	–	38.80	–	–	55.48
SHR		–	–	–	0.86	0.86	0.83	–	0.83	–	–	0.85
Water Flow		m³/h	–	–	4.77	5.30	6.79	–	8.05	–	–	11.24
Pressure Loss		kPa	–	–	93.8	78.6	84.3	–	85.7	–	–	108.0
Compressor
Compressor Type		–	Rotary	Scroll
Number of Compressor		pcs	1
Cooling Circuit		–	1
Capacity Control		step	1
Refrigerant Type		–	R-410A
Supply Fan
STD	Fan Type	–	EC Plug
	Airflow Rate	m³/h	2500	3400	3600	4500	5000	5800	6200	8400	9200	9400
	Static Pressure	Pa	30	30	30	30	30	30	30	50	50	50
	Number of Fan	pcs	1	1	1	1	1	1	1	1	1	1
	Fan Absorbed Power	kW	0.38	0.62	0,53	0.60	0.65	0,84	0.90	1.43	1.79	1.85
Dehumidifier*
Dehumidifier Type		–	Cooling + Electrical Reheater
Capacity (Std/Max)		kW	3	3	3	3/6	6/12	6/12	6/12	9/15	9/15	9/15
Humidifier*
Humidifier Type		–	Steam
Capacity		kg/h	3	3	3	3	3/8	3/8	3/8	3/8	3/8	3/8
Power Input (Max)		kW	2.25	2.25	2.25	2.25	6.00	6.00	6.00	6.00	6.00	6.00
Sound Level
Sound Power Level		dB(A)	66	71	65	60	63	66	67	72	74	74
Sound Pressure Level (3m)		dB(A)	49	53	48	43	45	48	49	54	56	57
Dimensions
Width		mm	700	700	700	700	780	780	780	930	930	930
Length		mm	700	700	780	780	950	950	950	1300	1300	1300
Height		mm	1600	1600	1980	1980	1980	1980	1980	1980	1980	1980
Weight		kg	180	200	235	255	360	370	420	510	525	535


1. Cooling capacity is given based on 35 °C DB, 30% RH indoor air temperature and 47 °C condensing temperature conditions.
2. Cooling capacity for the Chilled Water Cooling type (HK.0N0…) is based on 35 °C DB, 30% RH indoor air and 7/12 °C water conditions.
*Optional,
Imbat reserves the right to make changes to its products without prior notice.

GRUS Technical Specifications			GRUS 010
Cooling Capacity		kW	10.64
Sensible Heat Ratio Capacity		kW	10.64
Compressor Absorbed Power		kW	3.13
EER			3.18
Sensible Heat Ratio			1
Compressor
Refrigerant Type			R-410A
Number of Compressor		adet	1
Compressor Type			Inverter Scroll
Vantilator
STND.	Fan Type	–	EC Axial
	Airflow Rate	m³/h	1600
	Static Pressure	Pa	50
	Number of Fan	adet	1
	Fan Absorbed Power	kW	0.21
Sound Level
Sound Power Level		dB(A)	85
Sound Pressure Level (3m)		dB(A)	67
Dimensions
Width		mm	496
Length		mm	740
Height		mm	355
Weight		kg	47

Cooling capacity at 40°C DB, 20% RH indoor temperature and 35°C outdoor temperature,
İmbat reserves the right to make changes to unit data without prior notice,

MODEL KO.SG……S		800401	800802	801001	801301	801501	802002	802402	802802	803204	803804	804204	804404	804804	805004	805404	805604	806004	107004
Technical Specifications
Cooling Capacity	kW	10.20	20.10	27.20	37.90	43.10	55.90	67.20	82.60	88.90	106.10	118.30	119.50	130.60	143.20	153.90	161.00	176.70	185.10
Compressor Absorbed Power	kW	3.40	6.90	7.80	11.40	13.80	17.70	20.60	24.60	29.70	33.10	38.40	37.30	43.40	42.60	48.40	50.90	53.70	59.20
EER		3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00
Refrigerant Type		R-410A
Number of Compressor	pcs	1	2	1	1	1	2	2	2	4	4	4	4	4	4	4	4	4	4
Compressor Type		Scroll
Number of Fan	pcs	1	1	2	2	2	4	4	4	4	6	6	6	6	8	8	8	8	10
Fan Type		Axial
Fan Absorbed Power	kW	0.30	0.70	1.30	1.40	1.40	2.50	2.60	2.60	2.60	3.90	3.90	4.00	4.00	5.10	5.10	5.10	5.20	6.30
Total Absorbed Power	kW	3.70	7.60	9.10	12.70	15.20	20.20	23.10	27.30	32.30	37.00	42.30	41.20	47.40	47.70	53.50	56.00	58.90	65.60
Length	mm	530	650	955	955	955	1785	1785	1785	1785	1785	1785	1785	1785	1785	1785	1785	1785	1785
Width	mm	1350	1650	1860	1860	1860	1675	1675	1675	1675	2270	2270	2270	2270	2970	2970	2970	2970	3970
Height	mm	870	1150	925	925	925	1310	1310	1310	1310	1310	1310	1310	1310	1310	1310	1310	1310	1310


MODEL KO.SG……S		107604	108004	109004	110004	111004	112004	114004	116004	907004	907604	908004	909004	910004	911004	912004	914004	916004
Teknik Özellikler		107604	108004	109004	110004	111004	112004	114004	116004	907004	907604	908004	909004	910004	911004	912004	914004	916004
Cooling Capacity	kW	195.60	211.30	239.00	269.10	307.70	354.50	392.00	433.60	189.80	202.80	217.20	236.60	269.60	309.40	346.80	385.40	427.90
Compressor Absorbed Power	kW	65.70	68.00	84.20	89.70	93.70	102.60	120.80	137.30	62.50	70.50	72.20	85.00	91.80	96.70	102.50	120.20	136.50
EER		3.00	3.10	2.80	3.00	3.30	3.50	3.20	3.20	3.00	2.90	3.00	2.80	2.90	3.20	3.40	3.20	3.10
Refrigerant Type		R-410A
Number of Compressor	pcs	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Compressor Type		Scroll
Number of Fan	pcs	10	10	10	12	8	10	10	10	10	10	10	10	12	8	10	10	10
Fan Type		Axial
Fan Absorbed Power	kW	6.30	6.50	6.50	7.80	19.40	24.40	24.40	24.30	6.30	6.30	6.50	6.50	7.80	19.40	24.40	24.40	24.30
Total Absorbed Power	kW	72.00	74.40	90.60	97.50	113.10	127.00	145.20	161.60	68.90	76.80	78.70	91.40	99.60	116.20	126.90	144.60	160.80
Length	mm	1785	1785	1785	1785	1785	1990	1990	1990	1990	1785	1785	1785	1785	1990	1990	1990	1990
Width	mm	3970	3970	3970	4670	4670	5470	5470	5470	3970	3970	3970	3970	4670	4670	5470	5470	5470
Height	mm	1310	1310	1310	1310	1400	1400	1400	1400	1310	1310	1310	1310	1310	1400	1400	1400	1400

MODEL CH.HNG… Technical Specifications		464	564	726	786	906	1004	1104	1204	1404	1604	1806	2006	2206	2406
Cooling
Cooling capacity	kW	121.47	139.68	162	198	221.16	237.87	277.31	300.88	330.83	393.44	444.72	517.71	553.13	591.21
Total absorbed power	kW	42.90	53.10	69.64	75.48	84.10	94.16	103.85	119.51	139.37	148.13	183.36	186.37	203.79	220.35
EER		2.8314685314685	2.6305084745763	2.3262492820218	2.6232114467409	2.6297265160523	2.5262319456245	2.6702936928262	2.517613588821	2.3737533185047	2.6560453655573	2.4253926701571	2.7778612437624	2.7142156141126	2.6830496936692
SEER		3.26	3.03	2.68	3.01	3.02	2.91	3.07	2.90	2.73	3.05	2.79	3.19	3.12	3.09
Heating-Heat Pump
Heating capacity	kW	138.78	160.05	192.87	225.95	255.89	275.75	317.41	345.72	380.18	444.97	501.99	597.77	629.65	666.83
Total power input	kW	42.87	50.20	61.25	71.25	79.46	85.86	98.23	108.79	120.78	137.52	163.75	180.29	192.32	204.85
COP		3.24	3.19	3.15	3.17	3.22	3.21	3.23	3.18	3.15	3.24	3.07	3.32	3.27	3.26
Compressor
Refrigerant	R-410A
Compressor type	Scroll
Compressor quantity	pcs	4	4	6	6	6	4	4	4	4	4	6	6	6	6
Capacity step	Step	6	6	6	6	6	4	6	4	6	4	6	8	8	6
Compressor connection type		Asymmetric	Asymmetric	Standard	Asymmetric	Asymmetric	Standard	Asymmetric	Standard	Standard	Asymmetric	Asymmetric	Asymmetric	Asymmetric	Asymmetric
Evaporator
Evaporator type	Plate
Evaporator quantity	pcs	1	1	1	1	1	1	1	1	1	1	1	1	2	2
Min, water flow	kg/s	4.15	4.77	5.55	6.75	7.55	8.12	9.46	10.27	11.29	13.43	15.18	17.67	18.88	20.18
Nominal water flow	kg/s	9.67	11.12	12.94	15.75	17.61	18.94	22.08	23.96	26.34	31.33	35.41	41.23	44.05	47.08
Nominal water flow	kg/s	5.80	6.67	7.76	9.45	10.57	11.37	13.25	14.38	15.81	18.80	21.25	24.74	26.43	28.25
Nominal pressure drop	Pa	75	75	75	75	75	75	75	75	75	75	75	75	75	75
Condenser
Condenser type		Copper Tube, Aluminum Fins
Nominal airflow rate	m³/h	44000	44000	44000	75400	77400	70800	70800	88200	88200	88200	123800	116800	166800	166800
Fan type	mm	Axial
Fan diameter		910	910	910	910	910	910	910	910	910	910	910	910	910	910
Fan quantity		2	2	2	3	3	3	4	4	4	5	5	8	8	10
Fan power input	kW	3.3	3.3	3.3	4.94	5.14	5.14	6.59	6.59	6.59	10.42	10.8	13.79	13.79	14.24
Water inlet / outlet	Inch	2 1/2”	2 1/2”	3	3	4	4	4	4	4	4	5	5	5	5
Dimensions
Width	mm	1651	1651	1651	1651	1651	1651	1651	1651	1651	1651	1651	2493	2493	2493
Lenght	mm	2943	2943	2943	4044	4044	4044	5138	5138	5138	6247	6247	4593	4593	5600
Height	mm	2477	2477	2477	2477	2477	2477	2477	2477	2477	2477	2477	2663	2663	2663
Unit weight	kg	1177	1288	1455	1688	1827	1951	1951	2514	2541	2843	3007	3922	4002	4288
Unit operating weight	kg	1183	1295	1464	1698	18338	1964	2185	2530	2558	2863	3028	3946	4028	4315
Sound Level
Ses Gücü Seviyesi	dB(A)	80	81	81	82	83	86	89	90	90	91	92	92	92	93
Ses Basınç Seviyesi (10m)	dB(A)	52	53	53	54	55	58	61	62	62	63	64	64	64	65

PASSENGER BOARDING BRIDGE UNITS

Air Conditioning for Aviation

Standard Features

Optional Features

Inverter Compressor

Up to 0-100% Fresh Air Ratio

Hydrophilic or Epoxy-Coated Evaporator

Copper Tube and Copper Fin Condenser

Staged Electrical Heater

Condenser Fan Speed Control

Supply Air Humidity Sensor

Smoke Detector

Control Panel With Graphical Interface Tailored for Close Controls

Building Management System (BMS) Integration Options

Remote Control & Automation

What Makes İmbat Different

Compact and Modular Design Tailored for Aviation

High Efficiency for the Aviation Industry

Rapid Cooling

Ease Of Maintenance Tailored for Aviation

let`s talk

Contacts

MODEL H,N,I,6,V,A Technical Specifications		802	1002	1202	1402	1602	1802	2002	2202	2402	2802	3202	3602	4202	4402	4802	5402	6002	7203
Cooling
Cooling capacity	kW	210,2	257,5	286,7	348,8	387,3	387,3	460,5	558,4	631,1	702,6	854,8	930,4	978,8	1038,1	1170,8	1307,2	1447,2	1756,3
Compressor abs. power	kW	59,1	73,5	82,9	99,5	112,9	112,9	132,5	163,1	185,3	203,5	250,4	271	288,3	307,4	349,3	386,1	432,1	525,8
Compressor
Refrigerant	R-134a
Compressor type	Screw
Number of compressor	pcs	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	3
Cooling circuit	pcs	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	3
Capacity control	step	%12,5…%100
Sound Level
Sound pressure level	dB(A)	60	60	61	61	62	62	62	62	63	64	64	64	64	65	65	66	65	76
Dimensions
Length	mm	4030	4030	4030	5210	5210	6390	6390	6390	6390	7570	8750	9925	9925	9925	11160	12280	13460	16990
Width	mm	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400
Height	mm	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400

Rated at; Water Fluctuation: 7/12°C, Outside Temperature: 35°C

MODEL CH.MNG. Technical Specifications		352	464	564	704	786	906	1004	1104	1204	1404	1604	1806	2006	2206	2406	2606	2806	3006
Cooling
Cooling capacity	kW	95.55	121.65	139.69	179.05	213.26	233.62	252.33	277.23	300.49	346.78	402.77	483.52	519.41	600.21	640.10	680.22	719.08	771.91
Total absorbed power	kW	29.74	41.99	52.60	62.72	68.50	78.35	87.33	102.21	118.03	132.81	141.10	164.29	181.68	184.68	200.32	219.81	240.07	259.76
EER		3.2128446536651	2.8971183615146	2.6557034220532	2.8547512755102	3.1132846715328	2.9817485641353	2.889385091034	2.7123569122395	2.5458781665678	2.6110985618553	2.8545003543586	2.9430884411711	2.8589277851167	3.25	3.1953873801917	3.0945816841818	2.9952930395301	2.9716276562981
Compressor
Refrigerant	R-410A
Compressor type	Scroll
Compressor quantity	pcs	1	4	4	4	6	6	4	4	4	4	4	6	6	6	6	6	6	6
Capacity step	step	3	6	6	6	4	4	4	6	4	6	4	6	8	8	6	8	8	6
Compressor connection type		Asymmetric	Asymmetric	Asymmetric	Asymmetric	Standard	Standard	Standard	Asymmetric	Standard	Asymmetric	Standard	Standard	Asymmetric	Asymmetric	Standard	Asymmetric	Asymmetric	Standard
Evaporator
Evaporator type	Plate
Evaporator quantity	pcs	1	1	1	1	1	1	1	1	1	1	1	1	1	2	2	2	2	2
Min. water flow	kg/s	3.26	4.15	4.77	6.11	7.28	7.97	8.61	9.46	10.25	11.83	13.75	16.50	17.73	20.48	21.84	23.21	24.54	26.34
Max. water flow	kg/s	7.61	9.69	11.12	14.26	16.98	18.60	20.09	22.08	23.93	27.61	32.07	38.50	41.36	47.80	50.97	54.17	57.26	61.47
Nominal water flow	kg/s	4.57	5.81	6.67	8.55	10.19	11.16	12.06	13.25	14.36	16.57	19.24	23.10	24.82	28.68	30.58	32.50	34.36	36.88
Nominal pressure drop	kPa	75	75	75	75	75	75	75	75	75	75	75	75	75	75	75	75	75	75
Condenser
Condensor type	Microchannel
Nominal airflow rate	m³/h	37900	37900	37900	49600	75800	75800	75800	75800	75800	113800	113800	151800	151800	227800	227800	227800	227800	257000
Fan type	Axial
Fan diameter	mm	800	800	800	900	800	800	800	800	800	800	800	800	800	800	800	800	800	900
Fan quantity		2	2	2	4	4	4	4	4	4	6	6	8	8	12	12	12	12	12
Fan power input	kW	2.46	2.46	2.46	2.89	4.92	4.92	4.92	4.92	4.92	7.39	7.39	9.85	9.85	14.77	14.77	14.77	14.77	20.27
Water inlet / outlet	inch	2”	2 1/2”	2 1/2”	3”	3”	4”	4”	4”	4”	4”	5”	5”	5”	5”	6”	6”	6”	6”
Dimensions
Width	mm	1225	1225	1225	2220	2220	2220	2220	2220	2220	2220	2220	2220	2220	2220	2220	2220	2220	2270
Lenght	mm	2540	2540	2540	2785	2785	2785	2785	2785	2785	4030	4030	5250	5250	7450	7450	7450	7450	7450
Height	mm	2270	2270	2270	2270	2270	2270	2270	2270	2270	2270	2270	2270	2270	2270	2270	2270	2270	2270
Unit weight	kg	872	982	1219	1446	1702	1840	2376	2626	2672	3029	3224	3464	3612	3718	3800	4000	4170	4300
Unit operating weight	kg	960	1078	1326	1568	1840	1980	2540	2813	2865	3244	3461	3718	3843	3950	4038	4160	4330	4500
Sound Level
Sound pressure level (1m)	dBA	81	79	80	84	82	83	86	88	90	92	91	92	92	93	93	93	93	94
Sound pressure level (10m)	dBA	53	51	52	56	54	55	58	60	62	64	63	64	64	65	65	65	65	66

MODEL H.N.I.6…..V.A Technical Specifications		802	1002	1202	1402	1602	1802	2002	2202	2402	2802	3202	3602	4202	4402	4802	5402	6002	7203
Cooling
Cooling capacity	kW	235,30	286,30	340,60	402,90	455,00	505,40	536,80	656,60	730,30	832,50	983,50	1099,00	1165,70	1196,10	1372,90	1531,30	1689,50	2059,40
Compressor absorbed power	kW	46,60	56,70	67,30	79,50	89,70	99,50	105,50	130,00	144,30	162,60	194,80	216,00	226,60	236,20	269,20	296,60	333,20	403,80
Compressor
Refrigerant	R-134a
Compressor type	Screw
Number of compressor	pcs	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	3
Cooling circuit	pcs	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	3
Capacity control	step	%12,5…%100
Sound Level
Sound pressure level	dB(A)	62	62	62	65	65	65	65	66	69	69	71	71	72	73	74	75	76	77
Dimensions
Length	mm	2210	2010	2210	2010	2060	2060	3210	2610	3210	3210	3510	3510	3510	3510	3510	3510	3510	3510
Width	mm	610	670	670	720	720	720	670	720	720	720	720	720	720	720	720	720	720	720
Height	mm	1030	1110	1150	1230	1190	1190	1110	1230	1310	1310	1310	1310	1310	1310	1310	1310	1310	1310

Rated at; Water Fluctuation: 7/12°C, Outside Temperature: 35°C

VEGA Technical Specifications		VEGA 008	VEGA 012	VEGA 016	VEGA 020	VEGA 028	VEGA 036	VEGA 050	VEGA 058	VEGA 069	VEGA 085	VEGA 091	VEGA 104	VEGA 121	VEGA 140
Condenser
Total Capacity	kW	8,23	12,10	15,85	20,39	27,95	36,30	49,99	58,19	75,50	84,72	90,59	104,47	121,05	139,60
Type of Condenser	–	Copper Tube, Aluminum Fins
Number of Condenser	pcs	1										2
Fan
Type of Fan		Axial
Number of Fan	pcs	1	1	1	1	2	2	3	3	2	2	2	2	2	2
Airflow Rate (Cooling)	m³/h	4300	5000	6700	7000	12000	14600	21300	23000	33600	30500	35000	43200	48000	46000
Fan Motor Power	kW	0,19	0,30	0.51	0.63	0.94	1.18	1.88	1.80	2,64	2,54	1,64	1,72	2,94	2,83
Sound Pressure Level
Sound Power Level	dB(A)	64	69	70	73	72	75	77	77	77	77	74	78	79	79
Sound Pressure Level (3m)	dB(A)	47	51	53	55	54	57	59	60	59	59	56	60	62	61
Dimensions and Weight
Width	mm	580	580	580	580	580	580	580	580	890	890	1500	1500	1585	1585
Length	mm	960	960	1060	1160	1560	1780	2120	2465	2715	2755	2500	2500	2800	3000
Height	mm	880	880	1030	1030	1030	1180	1180	1280	1280	1280	1460	1400	1460	1460
Weight	kg	43.4	47.8	58	71	90	110	140	163	226.5	257	530	526	599	684

Total capacity refers to the capacity at a condensation temperature of 47°C.
İmbat reserves the right to make changes to unit data without prior notice.

CORVUS Technical Specifications		CORV 055	CORV 055	CORV 055	CORV 048	CORV 048	CORV 048
Total Cooling Capacity	kW	52,62	47,85	29,77	47,05	42,99	26,76
Sensible Heat Ratio	–	1			1
Power Supply	V/ph/Hz	230/1/50			230/1/50
Airflow Rate	m³/h	7500			7800
Fan Type	–	24 VDC Axial Fan			24 VDC Axial Fan
Fan Quantity	–	4			4
Fan Absorbed Power	kW	0,96			0,99
Water Flow	kg/h	7530	10300	10300	6740	9240	9240
Connections	–	DN25 (1″ BSP)
Rack Unit	–	42U
Dimensions (L x W x H)	mm	1996 x 600 x 324			1996 x 600 x 305
Parameters		Return Air Temperature 40 °C DB / RH 20%
Parameters		Inlet water temperature:10 °C Outlet water temperature:16 °C	Inlet water temperature:14 °C Outlet water temperature:18 °C	Inlet water temperature:24 °C Water flow rate: 10300 kg/h	Inlet water temperature:10 °C Outlet water temperature:16 °C	Inlet water temperature:14 °C Outlet water temperature:18 °C	Inlet water temperature:24 °C Water flow rate: 9240 kg/h

SAGITTA Technical Specifications		SATA.462G	SATA.502G	SATA.683G	SATA.763G	SATA.1004G
Electrical/Physical
Nominal Voltage	V/Ph/Hz	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50
MCA (Minimum Circuit Ampacity) – Cooling	A	166	194	282	284	288
MCA (Minimum Circuit Ampacity) – Heating	A	138	172	270	270	270
MOCP (Maximum Overcurrent Circuit Protection) – Cooling	A	224	252	359	362	365
MOCP (Maximum Overcurrent Circuit Protection) – Heating	A	166	226	347	347	347
Power Consumption	kW	86.37	103.66	153.69	155.49	190.87
Power Consumption @Operating Point	kW	65.84	74.77	123.55	124.27	136.05
Nominal Compressor Capacity	TR	46	50	68	76	100
Casing Dimensions (Width x Length x Height)	mm	2240 x 2900 x 1750	2265 x 3630 x 1750	2250 x 4750 x 1800	2250 x 6200 x 1770	2250 x 6200 x 1770
Overall Dimensions (Width x Length x Height)	mm	2280 x 3000 x 1800	2280 x 3750 x 1800	2280 x 4840 x 1850	2360 x 6310 x 1860	2360 x 6310 x 1860

*Optionally, (18″)
The operating point is at 35 °C dry bulb (DB) and 24 °C wet bulb (WB) temperatures.
İmbat reserves the right to make changes to unit data without prior notice,

PERSEUS		PERS 052M	PERS 072M	PERS 095M	PERS 122M	PERS 144M	PERS 167M	PERS 172M	PERS 192M	PERS 203M	PERS 217M	PERS 229M	PERS 253M	PERS 288M	PERS 332M	PERS 374M	PERS 416M	PERS 500M
Technical Specifications
Airflow Data
Fan Type		EC PLUG
Minimum Airflow Rate	m³/h	3850	5350	7100	9200	10725	12575	12900	14475	15220	16275	17170	18200	21550	24800	28050	31200	37500
Nominal Airflow Rate	m³/h	5200	7200	9500	12200	14400	16700	17200	19200	20300	21700	22900	25300	28800	33200	37400	41600	50000
Maximum Airflow Rate	m³/h	5980	8280	10925	14030	16560	19205	19780	22080	23340	24950	26330	29090	33120	38180	43010	47840	57500
Cooling Mode
Cooling Capacity ₍₁₎	kW	30.02	37.78	55.30	71.80	87.22	105.25	107.37	120.49	131.58	134.17	143.42	158.87	182.06	209.23	236.00	267.82	349.34
Sensible Cooling Capacity	kW	23.22	30.50	42.77	55.51	66.57	80.43	81.97	92.16	98.87	103.03	109.47	121.63	138.92	160.52	180.31	202.79	256.99
Total Absorbed Power	kW	9.84	11.28	16.46	21.51	26.02	30.33	31.27	33.58	37.61	38.60	40.17	45.61	51.47	59.72	66.45	77.79	104.14
^{EER ₍₁₎}		3.05	3.35	3.36	3.34	3.35	3.47	3.43	3.59	3.50	3.48	3.57	3.48	3.54	3.50	3.55	3.44	3.35
Heating-Heat Pump Mode
Heating Capacity ₍₂₎	kW	30.13	37.51	56.25	72.39	87.71	107.98	110.44	122.89	134.77	136.67	146.02	162.73	186.81	215.44	242.25	273.28	362.84
Total Absorbed Power	kW	9.18	10.54	15.93	20.62	24.85	29.34	30.45	32.02	37.55	36.49	39.06	43.57	49.03	56.89	62.61	74.64	101.32
COP ₍₂₎		3.28	3.56	3.53	3.51	3.53	3.68	3.63	3.84	3.59	3.75	3.74	3.73	3.81	3.79	3.87	3.66	3.58
Seasonal Efficiencies ₍₃₎
SEER		4.79	4.85	5.25	5.05	5.28	5.30	5.43	5.58	5.41	5.12	5.58	5.48	5.93	5.40	5.61	5.26	5.51
η_s,c		188.70	191.07	207.17	198.95	208.13	209.40	214.16	220.25	213.28	201.92	220.04	216.29	234.22	213.09	221.34	207.25	217.51
Cooling Mode Eurovent Energy Class		A	A	A+	A	A+	A+	A+	A+	A+	A	A+	A+	A+	A+	A+	A+	A+
SCOP		3.25	3.28	3.46	3.41	3.48	3.56	3.70	3.77	3.74	3.64	3.88	3.90	3.90	3.97	3.98	3.69	3.73
η_s,h		126.84	128.29	135.21	133.45	136.17	139.56	145.14	147.69	146.70	142.53	152.12	153.08	153.10	155.66	156.15	144.46	146.01
Heating Mode Eurovent Energy Class		B	B	B	B	B	B	A	A	A	A	A+	A+	A+	A+	A+	A	A
Additional Heater Options
Natural Gas Fired Heating Capacity (Low/Mid/High)	kW	21/28/35	28/45/55	35/55/69	45/69/92	55/69/92	69/92/110	62/92/142	69/110/142	92/126/163	92/126/163	92/142/184	92/142/184	126/163/220	126/184/252	142/220/284	163/252/326	184/284/368
Proportional Natural Gas Fired Heating Capacity (Low/Mid/High)	kW	19/34,85/42	34,85/42/65	34,85/42/65	42/65/82	65/82/100	65/82/130	65/82/130	82/100/130	82/100/164	82/130/164	82/130/164	100/130/200	100/164/200	130/164/300	130/200/300	164/200/300	164/300/400
Electrical Heater Heating Capacity (Low/Mid/High)	kW	9,9/19,8/29,7	14,0/27,9/41,9	18,9/37,8/56,7	24,8/49,7/74,5	29,0/58,0/86,9	33,8/67,7/101,5	34,9/69,8/104,8	38,9/77,8/116,6	40,9/81,7/122,6	43,9/87,8/131,7	46,0/92,0/138,0	50,8/101,6/152,5	57,8/115,7/173,5	66,9/133,8/200,7	74,9/149,8/224,7	83,9/167,8/251,6	99,8/199,7/299,5
Hot Water Coil Heating Capacity (Low/Mid/High)	kW	28,2/49,0/66,7	39,6/68,7/92,3	51,7/89,7/119,0	67,5/117,0/158,7	79,9/138,5/183,4	93,0/161,2/213,4	95,5/166,0/220,5	94,4/167,4/226,0	99,9/176,8/239,7	105,5/187,0/252,9	109,2/195,8/265,2	122,4/217,0/301,0	141,0/250,0/338,0	163,0/289,0/390,5	183,2/325,0/439,4	206,8/366,4/494,7	245,7/435,6/588,5
Cooling Circuit
Refrigerant Type		R-454B
Compressor Type		Inverter Scroll	Scroll
Number of Compressors		1	2	2	2	2	3	4	3	4	3	4	4	4	4	4	6	6
Number of Cooling Circuits		1	1	1	1	1	1	2	1	2	1	2	2	2	2	2	2	2
Electrical Data
Power Supply		380~420 V / 3 Ph + N / 50 Hz
Maximum Current ₍₄₎	A	32	35	55	72	85	102	104	110	124	131	133	151	170	203	217	263	346
Sound Data
Sound Pressure Level ₍₅₎	dB(A)	60	55	56	58	60	61	62	59	60	60	60	60	62	63	64	63	66
Dimensions
Width	mm	1850	2000	2160	2160	2020	2020	2020	2020	2260	2240	2260	2260	2260	2270	2270	2260	2270
Height	mm	1670	1825	1740	1765	1890	1990	2040	2145	2345	2245	2350	2345	2385	2345	2345	2410	2500
Lenght	mm	2220	2410	2910	3295	4140	4460	4300	5250	4480	4630	4435	4750	5470	6300	7190	6860	8500
Weight	kg	780	1040	1180	1350	1550	1763	1859	2048	2174	2238	2391	2485	2811	3380	4060	4610	5873

(1) Cooling Mode : Outdoor temperature 35°C DB – Indoor temperature 27°C DB / 19°C WB

(2) Heating Mode: Outdoor temperature 7°C DB / 6°C WB – Indoor temperature 20°C DB

(3) Seasonal Efficiencies: In accordance with standard EN14825, space cooling energy efficiency following Ecodesign regulation EU 2016/2281

(4) Current values are based on 35 °C outdoor, 27 °C DB / 19 °C WB indoor, with ISO Coarse 30% (G2) filters and medium-pressure fan.

(5) Sound pressure level at direction factor Q:2 and 5 meters away from the source.

SAGITTARIUS Technical Specifications		SAUS 061	SAUS 081	SAUS 0101	SAUS 0121	SAGITTARIUS Technical Specifications		SAUS 031	SAUS 061	SAUS 081	SAUS 0101	SAUS 0121
Cooling (1)						Cooling (1)
Cooling Capacity	kW	16,59	21,29	32,08	37,95	Cooling Capacity	kW	12.00	16,83	23.70	32.50	37.70
Absorbed Power	kW	6,63	9,42	11,55	13,58	Absorbed Power	kW	4.05	6.20	7.90	10.10	11.90
EER	–	2.50	2,26	2,78	2,78	EER	–	2.96	2,71	3.00	3,22	3,17
Heating (2)						Electrical Heater
Heating Capacity	kW	18,19	22,31	32,72	37,67	Heating Capacity (ΔT=15°C)	kW	7.50	15.00	20.00	30.00	38.00
Absorbed Power	kW	6,33	7,55	10,44	12,38	Heating Capacity (ΔT=30°C)	kW	15.00	30.00	40.00	60.00	76.00
COP	–	2.50	2,96	3,14	3,04	Compressor
Compressor						Refrigerant	–	R-410A
Refrigerant	–	R-410A				Number of Compressor	pcs	1
Number of Compressor	pcs	1				Compressor Type	–	Scroll
Compressor Type	–	Scroll				Cooling Circuit	pcs	1
Cooling Circuit	pcs	1				Capacity Control	step	1
Capacity Control	step	1				Supply Fan
Supply Fan						Fan Type	–	EC Plug
Fan Type	–	EC Plug				Airflow Rate	m³/h	2000	2800	4000	6000	7600
Airflow Rate	m³/h	2800	4000	6000	7600	Static Pressure	Pa	150	200	150	150	150
Static Pressure	Pa	150	150	150	150	Number of Fan	pcs	1	1	1	1	1
Number of Fan	pcs	1	1	1	1	Condenser
Electrical Heater*						Fan Type	–	Axial
Heating Capacity (ΔT=15°C)	kW	15	20	30	38	Condenser Type	–	Microchannel
Heating Capacity (ΔT=30°C)	kW	30	40	60	76	Number of Fan	pcs	1	1	2	2	2
Condenser						Airflow Rate (Cooling)	m³/h	5150	6528	15400	15400	15400
Fan Type	–	Axial				Sound Pressure Level
Condenser Type	–	Copper Tube, Aluminum Fins				Sound Pressure Level (1m)	dB(A)	88	83	83	90	86
Number of Fan	pcs	1	2	2	2	Sound Pressure Level (10m)	dB(A)	63	65	65	72	68
Airflow Rate (Cooling)	m³/h	6240	6240	12800	12800	Dimensions
Sound Pressure Level						Width	m	1.4	1.5	1.55	1.9	1.9
Sound Pressure Level (1m)	dB(A)	81	87	88	91	Length	m	1.7	2	2.2	2.2	2.2
Sound Pressure Level (10m)	dB(A)	62	67	70	73	Height	m	0.9	0.9	1.15	1.6	1.6
Dimensions
Width	mm	1620	1620	1850	1850	(1) Cooling Mode: Outdoor temperature 35°C DB – Indoor temperature 27°C DB / 19°C WB
Length	mm	2215	2215	2380	2200	İmbat reserves the right to make changes to unit data without prior notice,
Height	mm	1590	1590	1600	1600

*Optional feature,
(1) Cooling Mode: Outdoor temperature 35°C DB – Indoor temperature 27°C DB / 19°C WB
(2) Heating Mode: Outdoor temperature 7°C DB / 6°C WB – Indoor temperature 20°C DB
İmbat reserves the right to make changes to unit data without prior notice,

COLUMBA Technical Specifications			COLM 012	COLM 017	COLM 025	COLM 037
Cooling Capacity		kW	13.40	17.70	25.80	37.90
Sensible Heat Capacity		kW	13.40	17.70	25.80	37.90
Compressor Absorbed Power		kW	2.80	3.70	5.30	7.80
Sensible Heat Ratio		–	1	1	1	1
EER		–	4,04	4.30	4,39	4,28
Compressor
Refrigerant Type		–	R410-A
Number of Compressor		pcs	1	1	1	1
Compressor Type		–	Inverter Scroll Compressor
Vantilator
STND,	Fan Type	–	EC Plug
	Airflow Rate	m³/h	3650	4050	5000	8300
	Static Pressure	Pa	50	50	50	50
	Number of Fan	pcs	3	4	5	3
	Fan Absorbed Power	kW	0,47	0,44	0,57	1,07
Sound Level
Sound Power Level		dB(A)	85	82	83	89
Sound Pressure Level (3m)		dB(A)	67	64	65	71
Dimensions
Widht		mm	300	300	300	600
Lenght		mm	1200	1200	1200	1200
Height		mm	1950	1950	1950	1950
Weight		kg	249	258	276	348

Cooling capacity at 40°C DB, 20% RH indoor temperature, and 45°C condensation temperature,
İmbat reserves the right to make changes to unit data without prior notice,

PERFORMANCE DATA R-454B HEAT PUMP / 1
TECHNICAL SPECIFICATIONS		PERS 052M	PERS 072M	PERS 095M	PERS 122M	PERS 144M	PERS 167M	PERS 172M	PERS 192M	PERS 203M
AIRFLOW DATA
Fan Type						EC PLUG
Minimum Air Flow Rate	m3/h	3850	5350	7100	9200	10725	12575	12900	14475	15220
Nominal Air Flow Rate	m3/h	5200	7200	9500	12200	14400	16700	17200	19200	20300
Maximum Air Flow Rate	m3/h	5980	8280	10925	14030	16560	19205	19780	22080	23340
COOLING MODE
Cooling Capacity (1)	kW	31,27	39,35	55,30	71,80	87,22	105,25	107,37	120,49	131,58
Sensible Cooling Capacity	kW	24,19	31,77	42,77	55,51	66,57	80,43	81,97	92,16	98,87
Total Absorbed Power	kW	9,82	11,25	16,46	21,51	26,04	30,33	31,27	33,58	37,61
EER (1)		3,18	3,50	3,36	3,34	3,35	3,47	3,43	3,59	3,50
HEATING-HEAT PUMP MODE
Heating Capacity (2)	kW	32,05	39,90	56,25	72,39	87,71	107,98	110,44	122,89	134,77
Total Absorbed Power	kW	9,16	10,51	15,93	20,62	24,85	29,34	30,45	32,02	37,55
COP (2)		3,50	3,80	3,53	3,51	3,53	3,68	3,63	3,84	3,59
SEASONAL EFFICIENCIES (3)
SEER		4,96	5,07	5,23	5,03	5,25	5,30	5,43	5,58	5,41
ηs,c		195,41	199,92	206,39	198,33	206,89	209,40	214,16	220,25	213,28
Cooling Mode Eurovent Energy Class		A	A	A+	A	A+	A+	A+	A+	A+
SCOP		3,47	3,53	3,45	3,41	3,48	3,56	3,70	3,77	3,74
ηs,h		135,65	138,22	135,19	133,45	136,18	139,56	145,14	147,69	146,70
Heating Mode Eurovent Energy Class		B	B	B	B	B	B	A	A	A
